LaserFlow® - the UNradar Non-Contact Velocity Sensor

Teledyne ISCO’s LaserFlow non-contact velocity sensor has several UNique traits that make it the UNradar. Next to LaserFlow, radar is UNdesirable in a wide range of applications. In fact, radar is often UNsuitable and UNacceptable by comparison. Radar simply is UNable to match the UNparalleled accuracy, dependability, and usable data LaserFlow provides.

LaserFlow’s superiority is UNambiguous:

  • UNlike Radar, LaserFlow’s accuracy is not affected by a calm water surface.
  • UNlike Radar, LaserFlow’s accuracy is not affected by surface ripples caused by wind.
  • UNlike Radar, LaserFlow does not need a manual handheld velocity meter for calibration.
  • UNlike Radar, LaserFlow provides detailed diagnostics.
  • UNlike Radar, LaserFlow does not measure surface velocity, which is a significant advantage.
  • UNlike Radar, LaserFlow measures velocity below the surface, which is inherently more accurate.
  • UNlike Radar, LaserFlow does not require surface ripples to make a measurement.
  • UNlike Radar, LaserFlow has MCERTS Class 2 certification meeting or exceeding +/-4% flowrate accuracy.
  • UNlike Radar, LaserFlow Ex is available for intrinsically safe applications.
  • UNlike Radar, LaserFlow can measure very low flows.

 LaserFlow, the only non-contact flow measurement device to read below the surface. The LaserFlow device can be programmed to take a velocity m​easurement at single or multiple points below the water's surface. We also offer our intrinsically-safe LaserFlow Ex, specifically designed with safety in mind. For applications within the United Kingdom requiring certification by The Environment Agency, LaserFlow is designated MCERTS Class 2.

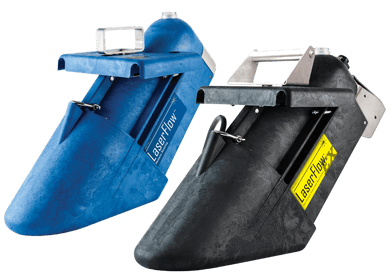

LaserFlow_Blue_and_Black_right_WebThe LaserFlow velocity sensor remotely measures flow in open channels with non-contact Laser Doppler Velocity technology and non-contact Ultrasonic Level technology. The sensor uses advanced technology to measure velocity with a laser beam at single or multiple points below the surface of the wastewater stream.

The LaserFlow Ex velocity sensor can be installed in hazardous areas defined as Class 1, Div 1, Zone 0 and ATEX category 1G. It remotely measures flow in open channels with non-contact Laser Doppler Velocity technology and non-contact Ultrasonic Level technology.

Standard Features

  • Non-contact velocity and level measurement
  • Single or Multiple Point measurement below the liquid surface
  • Rugged, submersible enclosure with IP68 ingress protection
  • Zero deadband from measurement point in non-contact level and velocity measurements
  • Quality readings without manual profiling
  • Bidirectional velocity measurement
  • MCERTS Class 2
  • Instrinsically Safe Class 1, Div 1, Zone 0 and ATEX category 1G (LaserFlow Ex model)
Applications
  • Permanent and portable flow measurement for CSO, SSO, I&I, SSEs, CMOM, and other sewer monitoring programs
  • Shallow flow measurement in varying pipe sizes
  • Wastewater treatment plant influent, process, and effluent flow measurement
  • Industrial process and discharge flow measurement
  • Stormwater conveyance and outfall
  • Irrigation canals and channels
  • Hazardous Area Installations (LaserFlow Ex Model)
